Merchant Platform OpenAPI Documentation

Before You Start

Become a MiniGame Merchant

Ensure that you have completed the registration of the MiniGame merchant account and can log in to the merchant platform. If not, please complete the registration and login first.

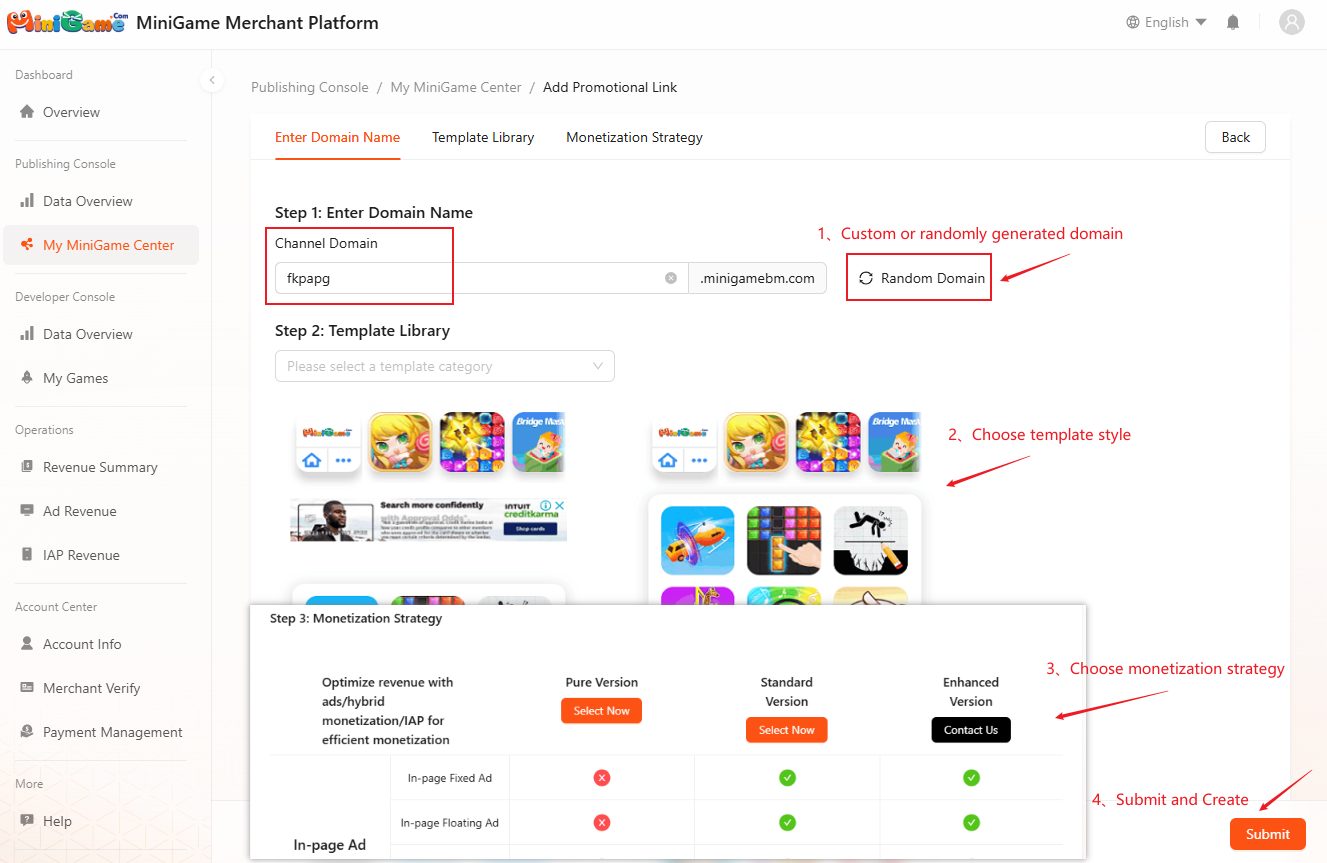

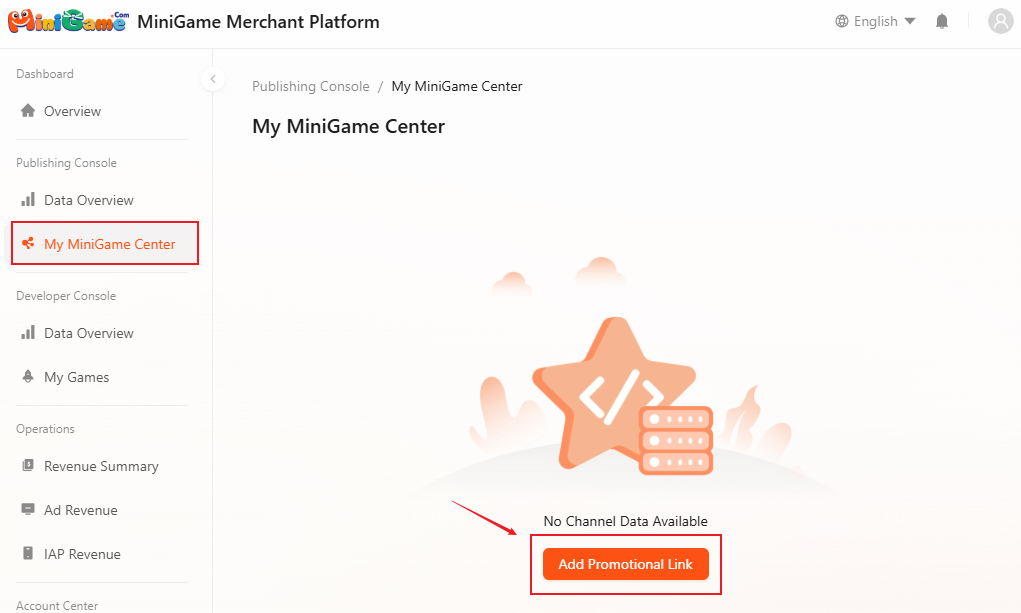

Create a Channel

Create the corresponding channel based on the domain, template, and monetization strategy.

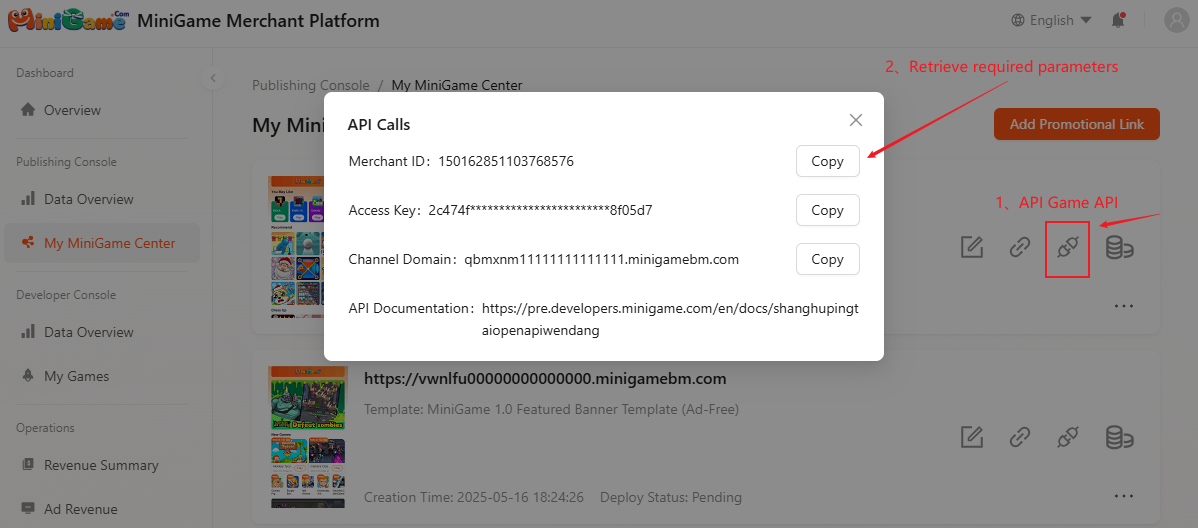

Obtain Access Keys

API Request Instructions

Request Frequency

Each merchant is limited to 10 requests per second. Excess requests will be rejected with:

{
    "code": 429,
    "reason": "RATELIMIT",
    "message": "service unavailable due to rate limit exceeded",
    "metadata": {}
}

Signature Mechanism

The OpenAPI service performs security verification on all API requests using a key-based signature mechanism. Details are as follows:

Key Acquisition

Refer to the "Obtain Access Keys" section above to retrieve the merchant's access keys.

Signature Rules

Parameter Concatenation

All API request parameters (including the header timestamp in ts ）must be concatenated into a signable string (sign_string) following these rules:

Parameter Concatenation

URL query parameters (for GET requests: the ?key=value part)
POST/PUT request body parameters (e.g., application/json format)
ts timestamp in the HTTP Header (must be included in the signature)

Concatenation Format

Parameters are joined in the format key=value, with multiple parameters separated by &.

Sorting Rule

All parameters (including ts) must be sorted in ASCII ascending order (lexicographical order) and then concatenated in sequence.

Signature Generation

The concatenated string is prefixed with theaccess key, then hashed using SHA256. The resulting string is the signature.

Example:

const crypto = require('crypto');
const https = require('https');
const { URL } = require('url');

// Configuration parameters
const config = {
  secretKey: 'xxxx', // Access key — replace with actual value; it's recommended to use environment variables
  clientId: '1234', // Merchant ID — replace with actual value; it's recommended to use environment variables
  baseUrl: 'https://openapi.minigame.com', // API address
};

/**
 * Generate signature string
 * @param {string} domain - Channel domain
 * @returns {object} containing timestamp and signature string
 */
function generateSignature(domain) {
  // Get current timestamp (millisecond precision)
  const timestamp = new Date().getTime();

  // Strict concatenation following Java implementation rules
  // Note: Adjust concatenation order and format according to your business rules
  const signData = `${config.secretKey}domain=${domain}&ts=${timestamp}`;

  // Generate SHA256 signature
  const sign = crypto.createHash('sha256').update(signData).digest('hex');

  console.log('=== Signature Generation Debug Info ===');
  console.log('Secret key used:', config.secretKey);
  console.log('Original signature string:', signData);
  console.log('Generated signature:', sign);
  console.log('Current timestamp:', timestamp);
  console.log('Merchant ID:', config.clientId);
  console.log('Channel domain:', domain);

  return { timestamp, sign };
}

Response Description

Successful Response

A successful request to the OpenAPI service returns HTTP status code 200, with the response body in JSON format.

Example:

{
    "links": [
        {
            "app_id": "xingchenqiyuan-ceshi",
            "link": "https://tgm.minigamebm.com/game/xingchenqiyuan-ceshi/play"
        },
        {
            "app_id": "before-the-divine-register",
            "link": "https://tgm.minigamebm.com/game/before-the-divine-register/play"
        }
    ]
}

Error Response

A successful request to the OpenAPI service returns a non-200 HTTP status code, with the response body in JSON format.

Parameter Details

Name	Description	Type	Required	Example	Notes
code	Integer error code	int	Yes	429	`Not recommended` for applications to handle OpenAPI errors using this field.
reason	String error code	string	Yes	RATELIMIT	`Recommended` for applications to handle OpenAPI errors using this field.
message	Error message	string	Yes	RATELIMIT	`Not recommended` for applications to handle OpenAPI errors using this field.

Example:

{
    "code": 429,
    "reason": "RATELIMIT",
    "message": "service unavailable due to rate limit exceeded",
    "metadata": {}
}

Error Code Definitions

Error Code	Description	Notes
RATELIMIT	Request rate limit reached.	The current rate limit is 10 requests/second per merchant. Requests exceeding this limit may return a `RATELIMIT` error. Please plan your request frequency accordingly.
UNAUTHORIZED	Unauthorized.	Please check: `x-md-global-cid`header contains the correct merchant ID; `sign` header contains a valid signature;
SERVER_INTERNAL	Internal server error.	Contact platform administrators for assistance.
MERCHANT_OPEN_API_INVALID	Merchant open-api unavailable.	Abnormal request. Contact platform administrators.
MERCHANT_OPEN_API_CHANNEL_NOT_FOUND	Merchant channel does not exist.	Verify if the specified channel exists.
MERCHANT_OPEN_API_CHANNEL_FORBIDDEN	Merchant channel access forbidden.	Confirm permissions for the target channel.
MERCHANT_OPEN_API_GAME_NOT_FOUND	Game not found.	Verify if the specified game exists.

API List

API Overview

Name	Description	Function
GetChannelGameLinks	Get game link list for a channel	Retrieves the list of game links for a specified channel based on the channel domain
GetChannelGameDetail	Get game details for a channel	Retrieves detailed game information for a specified channel based on the channel domain

GetChannelGameLinks

Retrieves the list of game links for a channel based on the channel domain.

Request Format

Method	URL
GET	https://openapi.minigame.com/openapi/v2/channel/{domain}/game/links

Request Headers

Name	Description	Type	Required	Example
sign	Signature	string	Yes	ca25acec11d7b89259f277b557c0841b9ae68391dd3e35bb3cda7f0c9a790e9e Example only. The actual value should be based on the actual request.
ts	Unix timestamp (millisecond precision, 13-digit integer)	int	Yes	1749193616816 Example only. The actual value should be based on the actual request
x-md-global-cid	Merchant unique identifier	int	Yes	205150566760842225 Example only. The actual value should be based on the actual request.

Request Parameters

Name	Description	Type	Required	Example
domain	Channel domain	string	Yes	emu3lg.minigame.com Example only. The actual value should be based on the actual request.

Response Parameters

Name	Description	Type	Required
links	List of channel game links	Structural array. Structure of each array element: { "app_id": "Game's app_id", "link": "Game URL within the channel" }	Yes

Example:

{
    "links": [
        {
            "app_id": "xingchenqiyuan-ceshi",
            "link": "https://tgm.minigamebm.com/game/xingchenqiyuan-ceshi/play"
        },
        {
            "app_id": "before-the-divine-register",
            "link": "https://tgm.minigamebm.com/game/before-the-divine-register/play"
        }
    ]
}

Sample Code (javascript)

const crypto = require('crypto');
const https = require('https');
const { URL } = require('url');

// Configuration parameters
const config = {
  secretKey: 'xxxx', // Access key — replace with actual value; it's recommended to use environment variables
  clientId: '1234', // Merchant ID — replace with actual value; it's recommended to use environment variables
  baseUrl: 'https://openapi.minigame.com', // API address
};

/**
 * Generate signature string
 * @param {string} domain - Channel domain
 * @returns {object} containing timestamp and signature string
 */
function generateSignature(domain) {
  // Get current timestamp (millisecond precision)
  const timestamp = new Date().getTime();

  // Strict concatenation following Java implementation rules
  // Note: Adjust concatenation order and format according to your business rules
  const signData = `${config.secretKey}domain=${domain}&ts=${timestamp}`;

  // Generate SHA256 signature
  const sign = crypto.createHash('sha256').update(signData).digest('hex');

  console.log('=== Signature Generation Debug Info ===');
  console.log('Secret key used:', config.secretKey);
  console.log('Original signature string:', signData);
  console.log('Generated signature:', sign);
  console.log('Current timestamp:', timestamp);
  console.log('Merchant ID:', config.clientId);
  console.log('Channel domain:', domain);

  return { timestamp, sign };
}

/**
 * Encapsulated HTTPS request function
 * @param {string} url - Request URL
 * @param {object} headers - Request Headers（Request Headers）
 * @returns {Promise} Response parameters
 */
function httpsRequest(url, headers = {}) {
  return new Promise((resolve, reject) => {
    const urlObj = new URL(url);

    const options = {
      hostname: urlObj.hostname,
      port: urlObj.port || 443,
      path: urlObj.pathname + urlObj.search,
      method: 'GET',
      headers: headers,
    };

    const req = https.request(options, (res) => {
      let data = '';

      res.on('data', (chunk) => {
        data += chunk;
      });

      res.on('end', () => {
        try {
          const parsedData = JSON.parse(data);
          resolve({
            status: res.statusCode,
            data: parsedData,
          });
        } catch (error) {
          resolve({
            status: res.statusCode,
            data: data,
          });
        }
      });
    });

    req.on('error', (error) => {
      reject(error);
    });

    req.end();
  });
}

/**
 * Get game list
 * @param {string} domain  - Channel domain
 */
async function getGames(domain) {
  try {
    console.log(`\n=== Requesting ${domain} game list ===`);

    const { timestamp, sign } = generateSignature(domain);

    const url = `${config.baseUrl}/openapi/v2/channel/${domain}/game/links`;
    const response = await httpsRequest(url, {
      sign: sign,
      ts: timestamp.toString(),
      'x-md-global-cid': config.clientId,
    });

    console.log(url);

    console.log('Response status:', response.status);
    console.log('Response data:', JSON.stringify(response.data, null, 2));
  } catch (error) {
    console.error('Request failed:', error.message);
  }
}

async function main() {
  console.log('Starting API requests...\n');

  await getGames('minigame.com'); // Replace with actual channel domain
}

main().catch(console.error);

GetChannelGameDetail

Retrieve game details for a channel based on the channel domain and game ID (app_id).

Request Format

Method	URL
GET	https://openapi.minigame.com/openapi/v2/channel/{domain}/game/{id}/detail

Request Headers

Name	Description	Type	Required	Example
sign	Signature	string	Yes	ca25acec11d7b89259f277b557c0841b9ae68391dd3e35bb3cda7f0c9a790e9e Example only. The actual value should be based on the actual request.
ts	Unix timestamp (millisecond precision, 13-digit integer)	int	Yes	1749193616816 Example only. The actual value should be based on the actual request.
x-md-global-cid	Merchant unique identifier	int	Yes	205150566760842225 Example only. The actual value should be based on the actual request.

Request Parameters

Name	Description	Type	Required	Example
domain	Channel domain	string	Yes	emu3lg.minigame.com Example only. The actual value should be based on the actual request.
id	Game id（app_id）	string	Yes	im-a-game Example only. The actual value should be based on the actual request.

Response Parameters

Name	Description	Type	Required
id	Game id（app_id）	string	Yes
detail	Game information structure: name，Game name type，Game type (see “Game Type Definitions” for enum values) how_to_play，How to play description，Game description icon，Game icon (see “Asset Structure Definition”) big_icon，Large game icon (see “Asset Structure Definition”) banner，Promotional banner image (see“Asset Structure Definition”) flash，Splash screen image (see “Asset Structure Definition”) link，In-channel game URL	structure	Yes

Game Type Definitions

Enum Value	Description
1	Casual
2	Adventure
3	Music
4	Simulation
5	Card
6	Board
7	Sports
8	Racing
9	Puzzle
10	Strategy
11	Action
12	Battle
13	Parkour
14	Shooting
15	Dress Up
16	Tower Defense
17	Synthesis
18	Break Through
19	Make Up
20	Casino
21	Education
22	Arcade
23	.io
24	Operate

Asset Structure Definition

Field	Description
uri	Asset uri
size	Material size width:Width (in pixels) height:Height (in pixels)

Example:

{
    "id": "xingchenqiyuan-ceshi",
    "detail": {
        "name": "poxiaoxulie-658song7tian.danshi",
        "type": 3,
        "how_to_play": "",
        "description": "",
        "icon": {
            "uri": "https://asset.minigamecloud.com/minicloud-open/developer/uuppii_icon.png",
            "size": {
                "width": 256,
                "height": 256
            }
        },
        "big_icon": {
            "uri": "https://asset.minigamecloud.com/minicloud-open/developer/popstone2_big_icon.png",
            "size": {
                "width": 512,
                "height": 512
            }
        },
        "banner": {
            "uri": "https://asset.minigamecloud.com/minicloud-open/developer/game/cp/108872806854295552/04ab6803-3dfb-45fe-8f36-d87390edfded.png",
            "size": {
                "width": 580,
                "height": 390
            }
        },
        "flash": {
            "uri": "https://asset.minigamecloud.com/minicloud-open/developer/game/cp/108872806854295552/cd0d7487-3a6d-4af0-99b2-7fd237c28a50.png",
            "size": {
                "width": 720,
                "height": 1280
            }
        },
        "link": "https://tgm.minigamebm.com/game/xingchenqiyuan-ceshi/play"
    }
}

Sample Code (JavaScript)

const crypto = require('crypto');
const https = require('https');
const { URL } = require('url');

// Configuration parameters
const config = {
  secretKey: 'xxxx', // Access key — replace with actual value; it's recommended to use environment variables
  clientId: '1234', // Merchant ID — replace with actual value; it's recommended to use environment variables
  baseUrl: 'https://openapi.minigame.com', // API address
};

/**
 * Generate signature string
 * @param {string} domain - Channel domain
 * @param {string} gameId - Game ID（app_id）
 * @returns {object} containing timestamp and signature string
 */
function generateSignature(domain, gameId) {
  // Get current timestamp (millisecond precision)
  const timestamp = new Date().getTime();

  // Strict concatenation following Java implementation rules
  // Note: Adjust concatenation order and format according to your business rules
  const signData = `${config.secretKey}domain=${domain}&id=${gameId}&ts=${timestamp}`;

  // Generate SHA256 signature
  const sign = crypto.createHash('sha256').update(signData).digest('hex');

  console.log('=== Signature Generation Debug Info ===');
  console.log('Secret key used:', config.secretKey);
  console.log('Original signature string:', signData);
  console.log('Generated signature:', sign);
  console.log('Current timestamp:', timestamp);
  console.log('Merchant ID:', config.clientId);
  console.log('Channel domain:', domain);
  console.log('Game ID:', gameId);

  return { timestamp, sign };
}

/**
 * Encapsulated HTTPS request function
 * @param {string} url - Request URL
 * @param {object} headers - Request Headers（Request Headers）
 * @returns {Promise} Response parameters
 */
function httpsRequest(url, headers = {}) {
  return new Promise((resolve, reject) => {
    const urlObj = new URL(url);

    const options = {
      hostname: urlObj.hostname,
      port: urlObj.port || 443,
      path: urlObj.pathname + urlObj.search,
      method: 'GET',
      headers: headers,
    };

    const req = https.request(options, (res) => {
      let data = '';

      res.on('data', (chunk) => {
        data += chunk;
      });

      res.on('end', () => {
        try {
          const parsedData = JSON.parse(data);
          resolve({
            status: res.statusCode,
            data: parsedData,
          });
        } catch (error) {
          resolve({
            status: res.statusCode,
            data: data,
          });
        }
      });
    });

    req.on('error', (error) => {
      reject(error);
    });

    req.end();
  });
}

/**
 * Get game details
 * @param {string} domain - Channel domain
 * @param {string} gameId - Game ID（app_id）
 */
async function getGameInfo(domain, gameId) {
  try {
    console.log(`\n=== Requesting ${domain} game ${gameId} details ===`);

    const { timestamp, sign } = generateSignature(domain, gameId);

    const response = await httpsRequest(
      `${config.baseUrl}/openapi/v2/channel/${domain}/game/${gameId}/detail`,
      {
        sign: sign,
        ts: timestamp.toString(),
        'x-md-global-cid': config.clientId,
      },
    );

    console.log('Response status:', response.status);
    console.log('Response data:', JSON.stringify(response.data, null, 2));
  } catch (error) {
    console.error('Request failed:', error.message);
  }
}

async function main() {
  console.log('Starting API requests...\n');

  await getGameInfo(
    'minigame.com', // Please replace with the actual channel domain name
    'crazy-ball', // Replace with actual game ID（app_id）
  );
}

main().catch(console.error);

------------------------------------------------------ END ---------------------------------------------------------------------------

Outline
